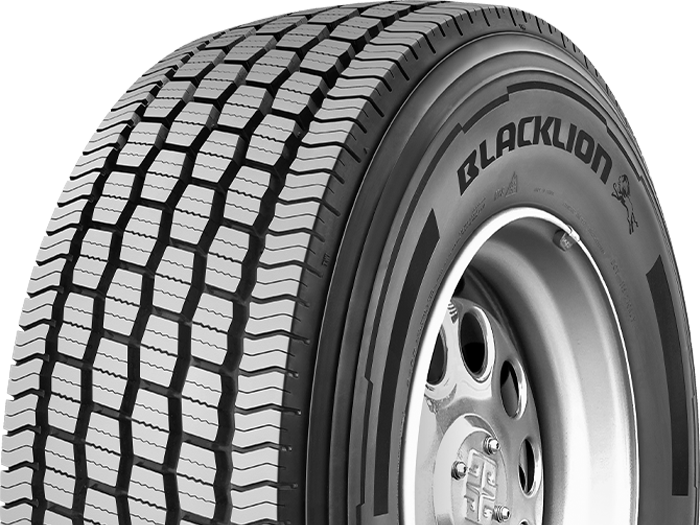

BW292

Suitable Conditions

Medium and long mileage truck running on paved and highway roads

Excellent Low-temperature Performace

Excellent Stability on Handling

Superior Traction on Snow

Suitable

Origin	Size	PR	LI/ SS	Standard Rim	Max. Load				Pressure				Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)
					(kgs)		(lbs)		(kPa)		(PSI)
					S	D	S	D	S	D	S	D
VN	275/70R22.5	16	148/145L	8.25	3150	2900	6940	6395	900	900	130	130	20.5	958	276
VN	295/80R22.5	18	152/149L	9.00	3550	3250	7830	7160	900	900	130	130	22	1044	298
VN	315/70R22.5	18	156/150L	9.00	4000	3350	8820	7390	900	900	130	130	20.5	1014	312
VN	315/80R22.5	20	156/153K	9.00	4000	3650	8820	8050	850	850	125	125	20.5	1076	312

S=Single D=Dual; 1inch=25.4mm 1kPa=0.142psi 1KG≈2.2lbs
